Key Concepts

Understanding the key concepts of Shogun Frontend is crucial to building a successful store. This guide contains brief explanations of the main concepts around Shogun Frontend.

Components

Components are pieces of a user interface. They are developed using JSX and CSS in the Shogun Frontend Integrated Development Environment (IDE).

Ideally they should have single responsibility and allow for easy customization and reusability. Components are not available to add directly to your page and must be imported within a section in the IDE. Components do not have variables defined in the IDE sidebar.

Example of a Component as viewed in Shogun Frontend IDEExample of a Component as viewed in Shogun Frontend IDE

Example of a Component as viewed in Shogun Frontend IDE

App Component

The App Component is a special Component that wrap the entire store making it easy to maintain, among other things, a custom provider that will expose some functionality to all the pages.

The App Component will automatically be used to wrap the store, you don't need to import it or use anywhere. Therefore, an important requirement of this component is that it must return children.

🚧

As any other Component, the App Component cannot access data from the CMS.

The App Component is not included by default in your store. You can check Starter Kit's App Component for an api example.

Sections

Sections are the building blocks for your store's pages. Like components, sections are also developed using JSX and CSS in the Shogun Frontend IDE. A section receives data via variables that must match its props.

Example of a Section as viewed in Shogun Frontend IDEExample of a Section as viewed in Shogun Frontend IDE

Example of a Section as viewed in Shogun Frontend IDE

Variables

In the context of Shogun Frontend, variables are the props passed to the sections. These are defined in the right sidebar in the IDE. These variables will be available when editing one of your pages, allowing you to map them to a field in the CMS or manually enter the values directly in the Experience Manager sidebar.

📘

Variables names must follow the camelCase convention.

Variables can be of the following data types:

  • Text
  • Number
  • Media
  • Boolean
  • Reference
  • Rich Text
  • HTML

🚧

You cannot change the data type of a field once a section is created. You will need to delete and re-create the field if you wish to change its definition.

Custom content section

Custom content is a special section that allows you to add sections that only apply to a subset of pages generated by a template.

Adding a Custom content section to a templateAdding a Custom content section to a template

Adding a Custom content section to a template

Once in place, you will be able to add sections to that position on any of the individual pages generated from a template.

You can add as many custom content sections to the template page, at any position between the existing template sections, as required.

Adding a section to the custom content areaAdding a section to the custom content area

Adding a section to the custom content area

Reference type

This data type allows you to reference content items from an existing content group in a field of another content group.

CMS Content

The CMS allows you to define the structure of your content used when building your pages in the Experience Manager.

List of CMS ContentList of CMS Content

List of CMS Content

Content Groups

Content groups are created to define the data model of your store; you can think of them as a table. Content groups have fields which can be mapped to variables created in the IDE when creating your page in the Experience Manager, fields are like columns in your table.

Fields can be of the following data types:

  • Text
  • Number
  • Media
  • Boolean
  • Reference
  • Rich Text
  • HTML

External Content Groups

External content groups are imported automatically from your backend platform, e.g. Shopify. You can't edit the values of external content group fields within Shogun Frontend; these values need to be edited at the source (in Shopify or BigCommerce) and the updates will automatically be pulled into Shogun Frontend via webhooks.

To indicate that a Content Group is an External Content Group, the logo of your backend platform appears right after its name. In this case, the Shopify logo.To indicate that a Content Group is an External Content Group, the logo of your backend platform appears right after its name. In this case, the Shopify logo.

To indicate that a Content Group is an External Content Group, the logo of your backend platform appears right after its name. In this case, the Shopify logo.

📘

A very powerful feature in Shogun Frontend is the ability to add Custom Fields to an External Content Group. This allows you to supplement the product data from Shopify with custom data required for business logic in your Frontend Sections. You no longer have to manage custom data via Tags or Metafields!

Content items

Content items are the entries created for your defined data model.

List of Content items of a CMS Content GroupList of Content items of a CMS Content Group

List of Content items of a CMS Content Group

Experience Manager (XM)

The go-to place to build your pages, by adding sections and configuring its data.

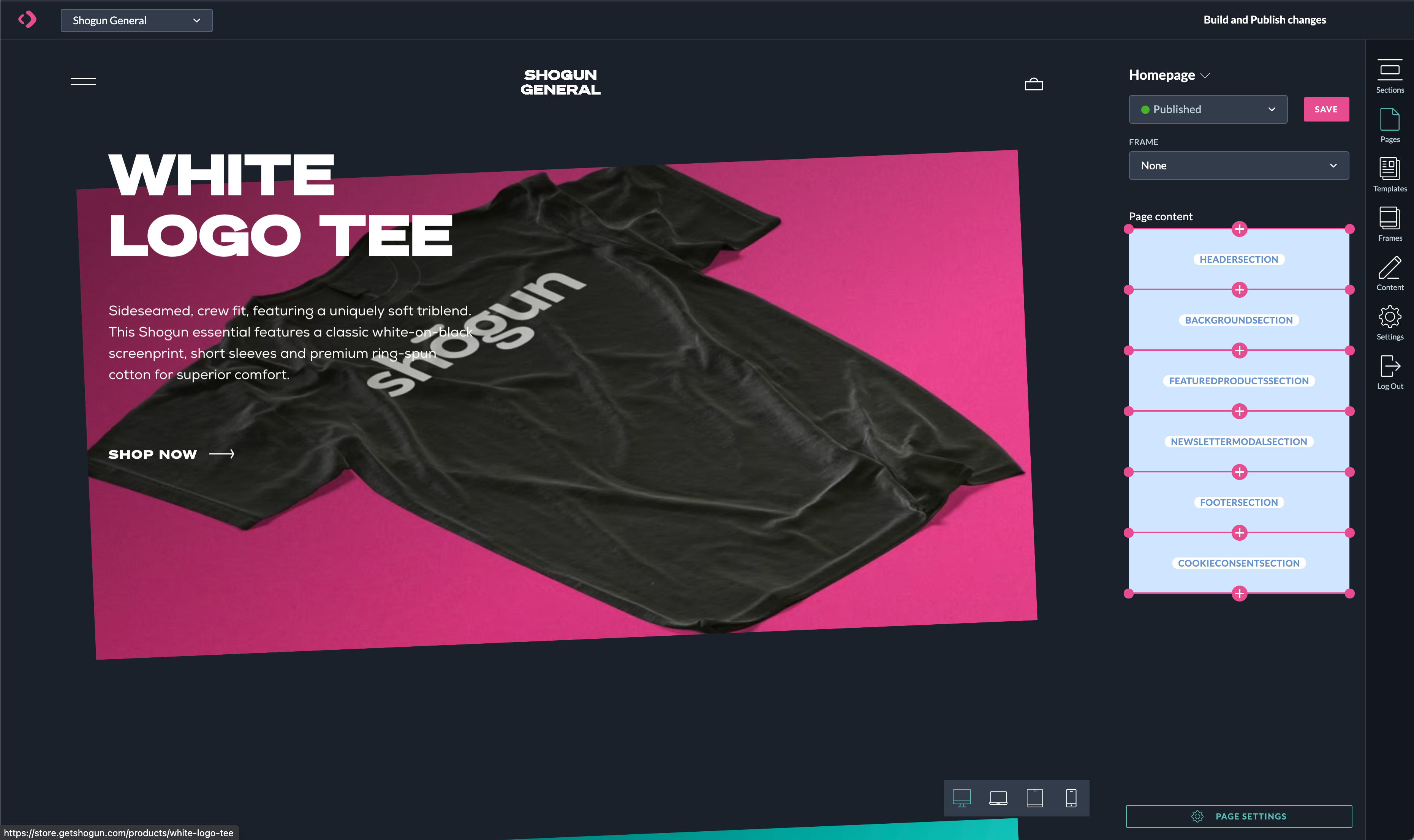

The Experience Manager showcasing a page.The Experience Manager showcasing a page.

The Experience Manager showcasing a page.

Templates

A template can be created for a given CMS Content Group. When creating or updating a template, a page will be automatically generated or re-generated for each content item within that content group. Sections added to a template page will exist on all pages generated. Any sections custom to a page should be added as custom content sections.

When configuring the data for your template page sections, section variables (defined in the IDE) are typically connected to the Current Content Group. When your template page is saved, we will fetch the field values from the CMS for the relevant Content Item for each generated page.

Example of a TemplateExample of a Template

Example of a Template

Frames

Frames allows you to create top and bottom Sections (like headers and footers) and apply those globally across templates and pages. More information can be found in the Frames Guide.

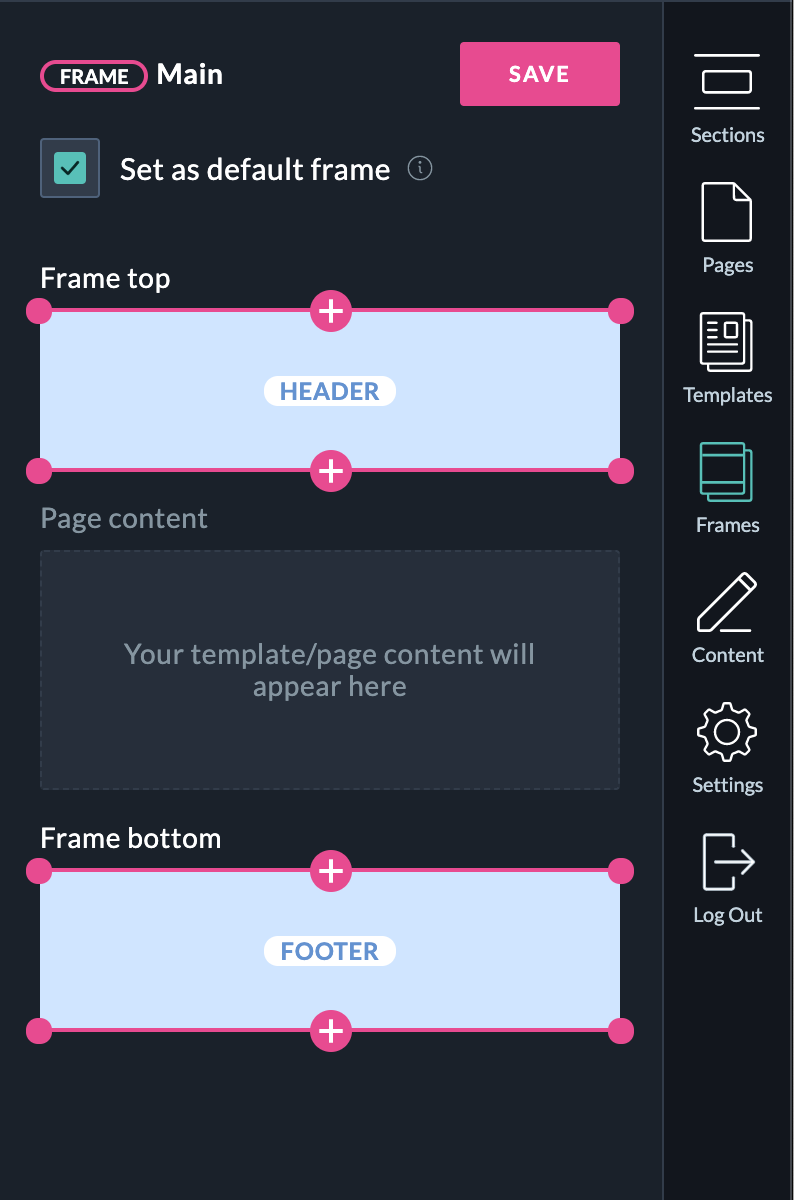

Frame exampleFrame example

Frame example

Pages

Pages are created in the Experience Manager (XM) by adding section and providing its data either connected to the CMS or manually entered in the sidebar.

A page can be created from scratch or automatically generated from a content item when a template page is created for a content group.

Page Settings (SEO)

Page Settings allow you to define the PageMeta Section values that will be inserted into the <head> for all generated pages.

For templates, you will likely want to tie this to your Current Content Group fields, so that these are populated correctly for each page generated per Content Item. For pages that are not tied to a Template (standalone pages/static pages), you can manually set the values or link them to an existing CMS field.

Page SettingsPage Settings

Page Settings

Store Settings

In the Store settings you can:

  • View and change your store name
  • View your store domain
  • Define global styles to be used across the whole store
  • Manage the store's robots.txt file
  • Define url redirects
  • Include custom webfonts
  • Customize your store's site manifest for a better PWA experience
  • Manage GitHub and Slack integration
Store Settings pageStore Settings page

Store Settings page

Headless commerce

Headless commerce refers to separating or ‘decoupling’ the frontend of your online store (the beautifully laid-out interface your customers interact with) from the backend (the behind-the-scenes functions that facilitate sales).

Read more about Headless commerce here.

PWA

Progressive web app (PWA) is a website served over HTTPS, in a web browser, but — because of its architecture — behaves more like a downloadable native app than a static website. A PWA headless store first loads as a static web page and then progressively becomes a “single page web application” in your browser (hence the name).

Read more about PWA here.

SSR

Server-Side Rendering (SSR) is a technique that allows taking the often heavy — and expensive — task of rendering a web site in a web browser to the server, making the page more faster and giving the user a better experience.
